Описание
Технические характеристики

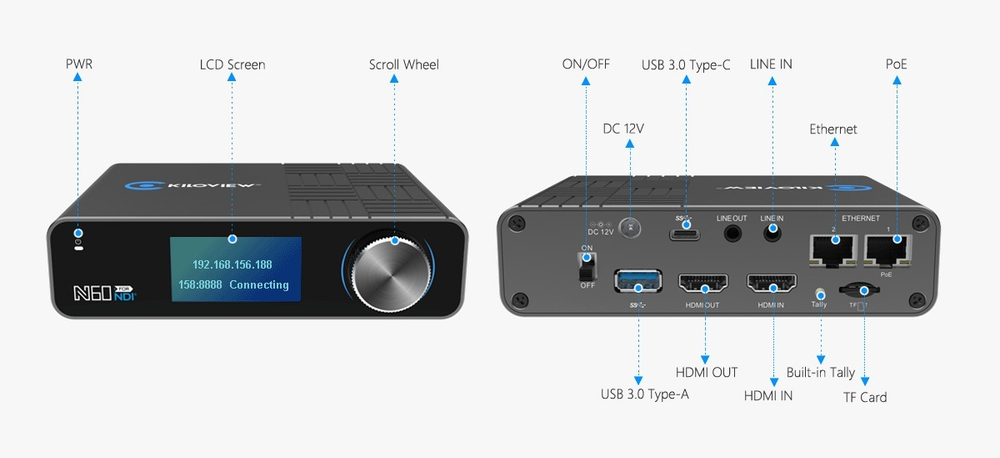

| Video input | 1*4Kp60 HDMI 2.0 |
| Video output | 1*4Kp60 HDMI 2.0（Loop or decoding output） |
| Audio port | 1*3.5mm Line in |
| 1*3.5mm Line out | |
| Network | 2*RJ45 1000Mbps Ethernet port |
| Ethernet 1 with PoE (IEEE 802.3AT, 24W Max) | |
| Video resolution | Input: up to 3840x2160 60fps (4Kp60), lowest 720p50 |
| Output (decoding or loop out): up to 3840x2160 60fps (4Kp60), lowest 720p50 | |
| NDI® codec capacity | 1x NDI® FB/HX encoding or 1x NDI® FB/HX decoding |
| NDI®CODEC feature | SpeedHQ (NDI CODEC): SHQ0, SHQ2 |
| ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 | |
| ISO MPEG-H Part 2: High-Efficiency Video Coding (HEVC)/ITU H.265 | |
| AVC (H.264): Baseline, Main, High, High10, High 4:2:2 up to 5.2 level | |
| HEVC (H.265): Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier | |
| Audio encoding and decoding | NDI Audio; AAC-LC, Opus, G.711 a-Law/u-Law; other software expansion |
| USB | 1*USB3.0 (type A) |
| 1*USB3.0 (type C) | |
| Human-computer interaction | 1.96〞LCD screen, KILOVIEW Magic Rotor |
| TF storage | Support TF card for recording, capacity up to 2TB |
| Tally | Built-in OLED panel available as front/rear Tally |
| Power | DC 12V （5.5/2.5）or PoE |
| NDI | Support both NDI and NDI|HX 2.0 (Note: It will support NDI|HX 3.0 in the near future) |
| Typical Bitrates | SpeedHQ (NDI CODEC): |
| 4Kp60: 250Mbps, 1080p60: 132Mbps, 1080p30/1080i60: 112Mbps, 720p60: 105Mbps | |
| 480i60: 62.5Mbps | |
| AVC (H.264): | |
| Adjustable from 1Mbpsto 120Mbps. >24Mbps (4Kp60); >10Mbps(1080p60). | |
| HEVC (H.265): | |
| Adjustable from 1Mbps to 120Mbps. >15Mbps (4Kp60); >6Mbps(1080p60). | |
| Recording | TF card available for local storage to .mov filles. |
| Support remote recording with KILOVIEW Recorder System, ensuring reliable recording together with Kiloview Smart Recording technology (TF card required). | |
| Voice intercom | Support voice intercom by USB headset between devices directly, or with KILOVIEW Intercom server. |
| PTZ | Support PTZ control through USB to serial RS232/485/422; |
| or PTZ control over IP with different protocols, no extra cable required | |
| Input with Web Cam via USB | Support video input from Web Cam via USB 3.0 (Note: license required) |
| Connection with PC via USB | Support connection with PC via USB Type-C, as a video capture device (Note: license required) |
| Management | Web UI and remote management with KILOVIEW KiloLink Server |
| Firmware update | Firmware upload by Web UI and remote upgrade with KILOVIEW Kilolink Server |
| Mounting | Support cold-shoe mounting and V-mounting |
| Power Consumption | 16W Max |
| Certificates | CE/ FCC/ROHS |
| Dimension | 135*98*35mm |
